PAT - PROXIMITY AWARENESS TECHNOLOGY

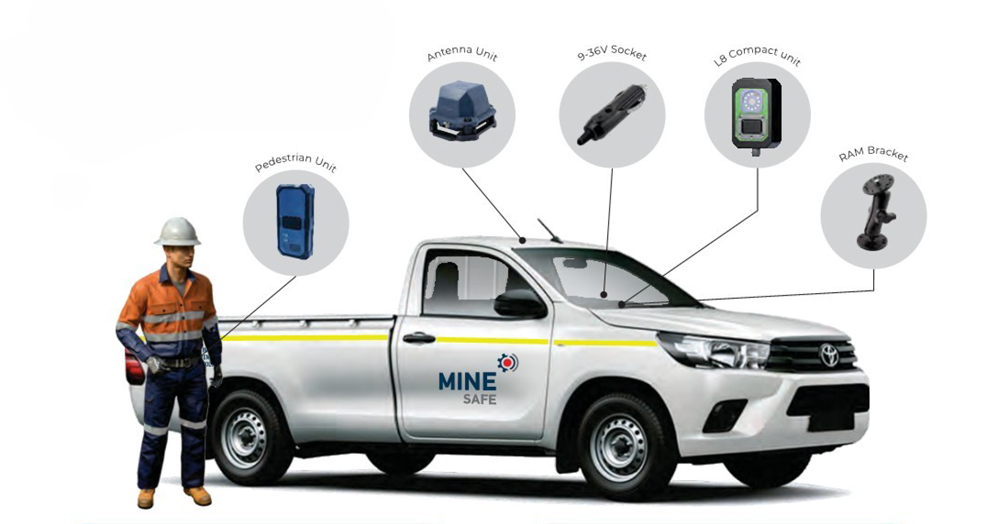

Mobile/Visitors Unit

Overview:

  • Basic VDS mobile / visitors unit.
  • Detects Vehicle to Vehicle and Vehicle to Pedestrian.
  • 360° detection LED display with 30° increments to aware operator of immediate traffic or pedestrians in his surrounding with audible and visual alarms.
  • Cost effective, safe and robust VDS unit compliant with legislation.
  • Plug & Play unit, fitted with a male lighter socket for ease of fitment.

Features:

  • Audible and visual alarms.
  • Back office radio for live tracking capabilities
  • Internal data / event logging
  • Customizable parameter & zone setup
  • Predictive path algorithm software solution
  • WIFI enabled
  • Self diagnostic testing
  • IP 66 Waterproof Rating
  • 800V Spike protection
  • 9-36V Lighter socket
  • UV Resistant polycarbonate enclosure
  • Easy fitment
  • Maintenance friendly
  • 2 Years Warranty

LEVEL 8 - Compact Fixed Unit

Overview:

  • Basic VDS Level 8 surface mining unit.
  • Detects Vehicle to Vehicle and Vehicle to Pedestrian.
  • 360° detection LED display with 30° increments to aware operator of immediate traffic or pedestrians in his surrounding with audible and visual alarms.
  • Cost effective, safe and robust VDS unit compliant with legislation.

Features:

  • Level 7 Detection & Level 8 Suggestive Warnings
  • Back office radio for live tracking capabilities
  • Internal data / event logging
  • Customizable parameter & zone setup
  • Predictive path algorithm software solution
  • WIFI enabled
  • Tamper proof connector solutions
  • I/O Module - Ign, Rev, Pos, Neg
  • Self diagnostic testing
  • IP 66 Waterproof Rating
  • 800V Spike protection
  • UV Resistant poly carbonate enclosure
  • Easy installation / fitment
  • Maintenance friendly
PAT - PROXIMITY AWARENESS TECHNOLOGY

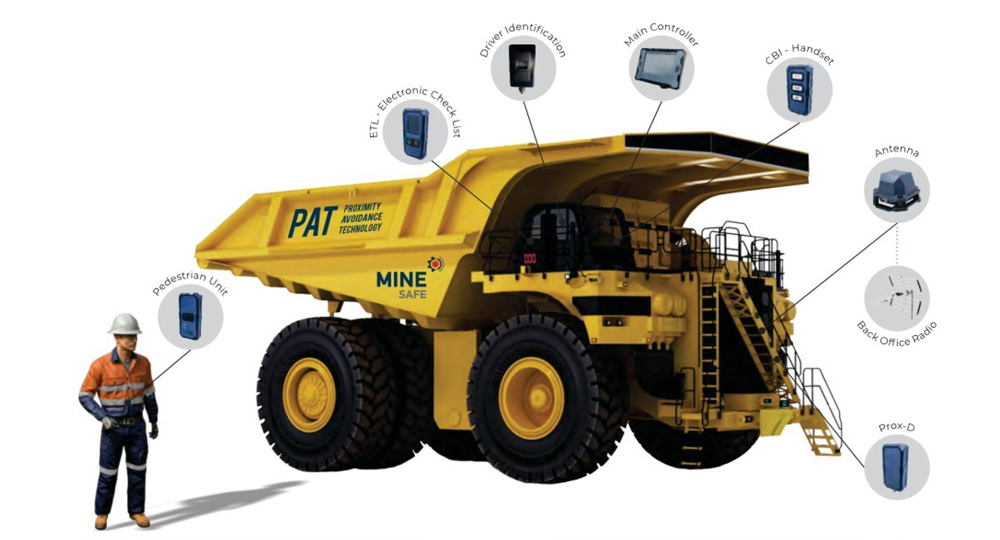

Level 9 - PAT System

Overview:

  • The Level 9 Proximity Avoidance Technology system is using intervention controls to safely derate and stop the vehicle within a vehicle to vehicle, vehicle to pedestrian or vehicle to object (setup with geo fence) scenario.
  • Complex software solution for path prediction linked with the advanced VDS solution is purposefully designed to comply with legislation.

Features:

  • Dual technology GPS / RTLS • Back office radio integrated for telematics & reporting / live tracking (No monthly costs)
  • Interactive handset to initiate function.
  • Load mode function / pairing.
  • Static & Dynamic zones.
  • Automated derating & braking.
  • Fully customizable braking curves & setup with OEM & integration.
  • CANbus (J1939 based on IS021815)
  • Path prediction algorithm software for complex maneuvering.
  • Geo fence in conjunction with site traffic management plan.
  • Data logging and back office testing (site cloud)
  • Suggestive alarms, audible & visual (Speech included)
  • Distinguishable icons per type.
  • Full colour LCD display with GIS mapping.
  • Electronic tick list for paperless inspections -Push to back office.
  • Driver identification to actively do key control.
  • WIFI enabled.
  • Tamper proof connection solution.
  • IP 66 Waterproof rating
